The Grasshopper

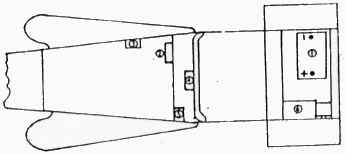

1 12v battery
2 Fusebox
3 Footswitch (push bolton)
4 Cross over switch
5 Reverse isolating switch
6 12v motor

The Plans & manual now available will enable the average handymen to build the Grasshopper themselves.

The basic body tub is built from a single 8’ x 4’ sheet of Medite ‘MD F’, a medium density fibreboard available from most wood suppliers.

All the running gear, i.e. axles, steering wheel etc., the GRP (wings & nosecone) and everything else you would need to make up the complete kit can be supplied by us. This can be bought as a complete kit or each item individually, as and when needed. Many parts can be obtained from general D.I.Y. or hardware stores, therefore cutting the cost, and the Build Manual gives instructions on how to make some of the parts.

The body tub can be skinned in aluminium, but this is optional. MDF is a very good wood to work with, and with a little filler, then sandpaper it will be just as effective when painted.

The Grasshopper uses a high powered 200 watt motor and a single 12 volt car battery will provide up to 3 hours continuous running from one charge. It features brakes, together with forward and reverse gears.

Assembly is quite simple following our step-by-step Build Manual.  The Manual is easy to follow and is accompanied by many self explanatory drawings for each stage.

The finished dimensions are:

Length: 1.858m

Width 0.940m

Height: 0.610m

How could any child resist it? Hours of fun for dad in the building and hours of fun for the kids in driving their very own custom built car.

THE GRASSHOPPER

PRICE LIST.

Effective from 25 April 1999.

COMPONENTS

PRICE



£ . p

Patterns/build manual

35.25

Front axle
Includes left & right hand stub axle, long & short steering arms.

43.50

Steering Column

23.50

Rear axle

18.50

Brake assembly
Includes brake pedal, brake bar, push bar & 2 return springs.

39.95

Roll bar & spare wheel carrier

20.25

Steering wheel

37.75

Aluminum bonnet

32.00

Windscreen assembly
Includes triangle brackets

33.10

Sprockets
Includes motor sprocket & spare wheel sprocket.

35.00

Foot switch

5.30

Cross over switch

9.83

MOTR air cooled 12 volt & soft start

199.75

Wheels

111.63

Set of 5


G.R.P.
Includes front wings, rear wings, nose cone & blister.

111.63

Chain & split link

2.65

Grille mesh

4.70

Fuse box, Crocodile clips

3.53

2 sets of louvres for bonnet

7.05

Fully built body tub

126.25

Working lights
Includes 2 headlights, 2 tail lights.

24.68
